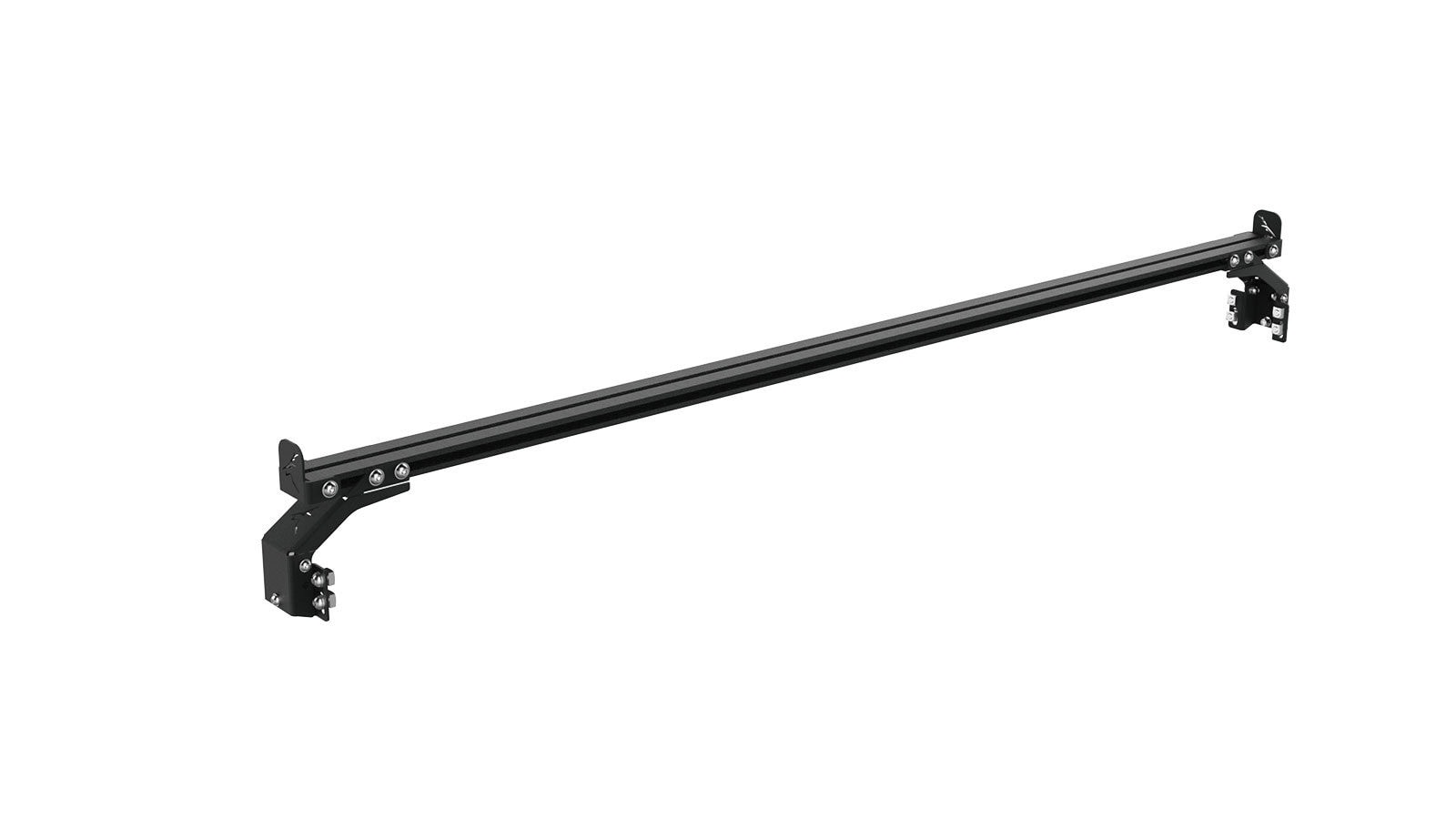

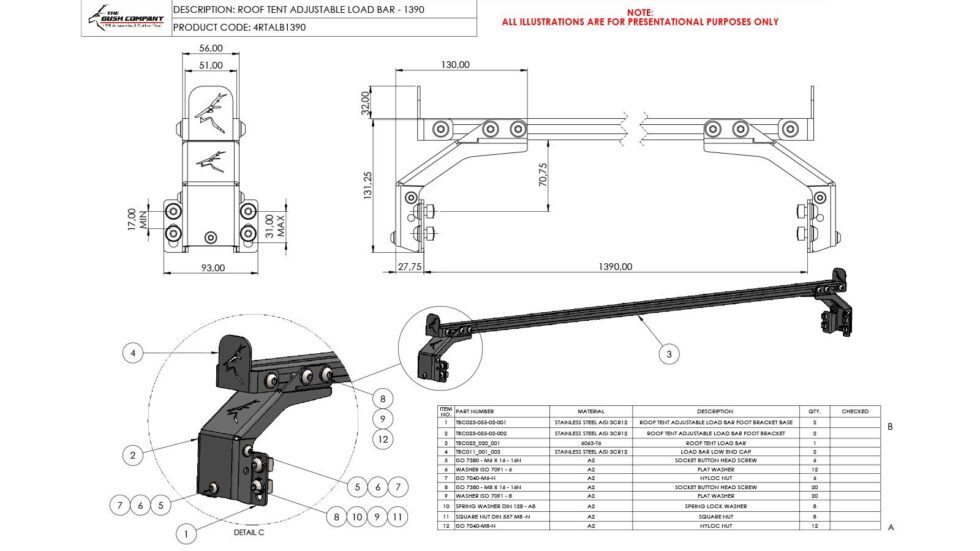

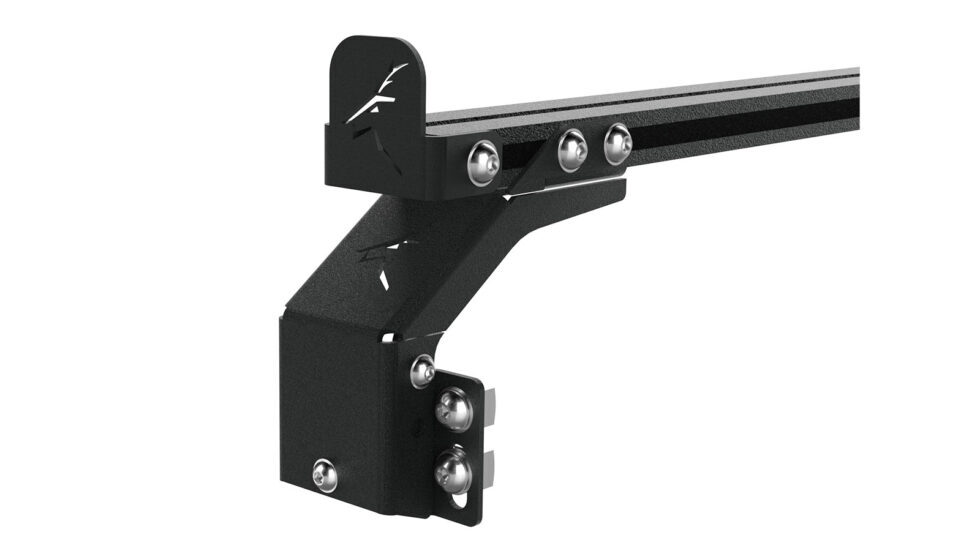

The Adjustable Load Bar is sold in singles units and includes one 1390mm long load bar and brackets that can be easily mounted to the ‘Ezi-slot’ channels built into side of the roof of the LX27 Clamshell Rooftop Tent. Each bar is rated to hold 100Kg (220lbs)

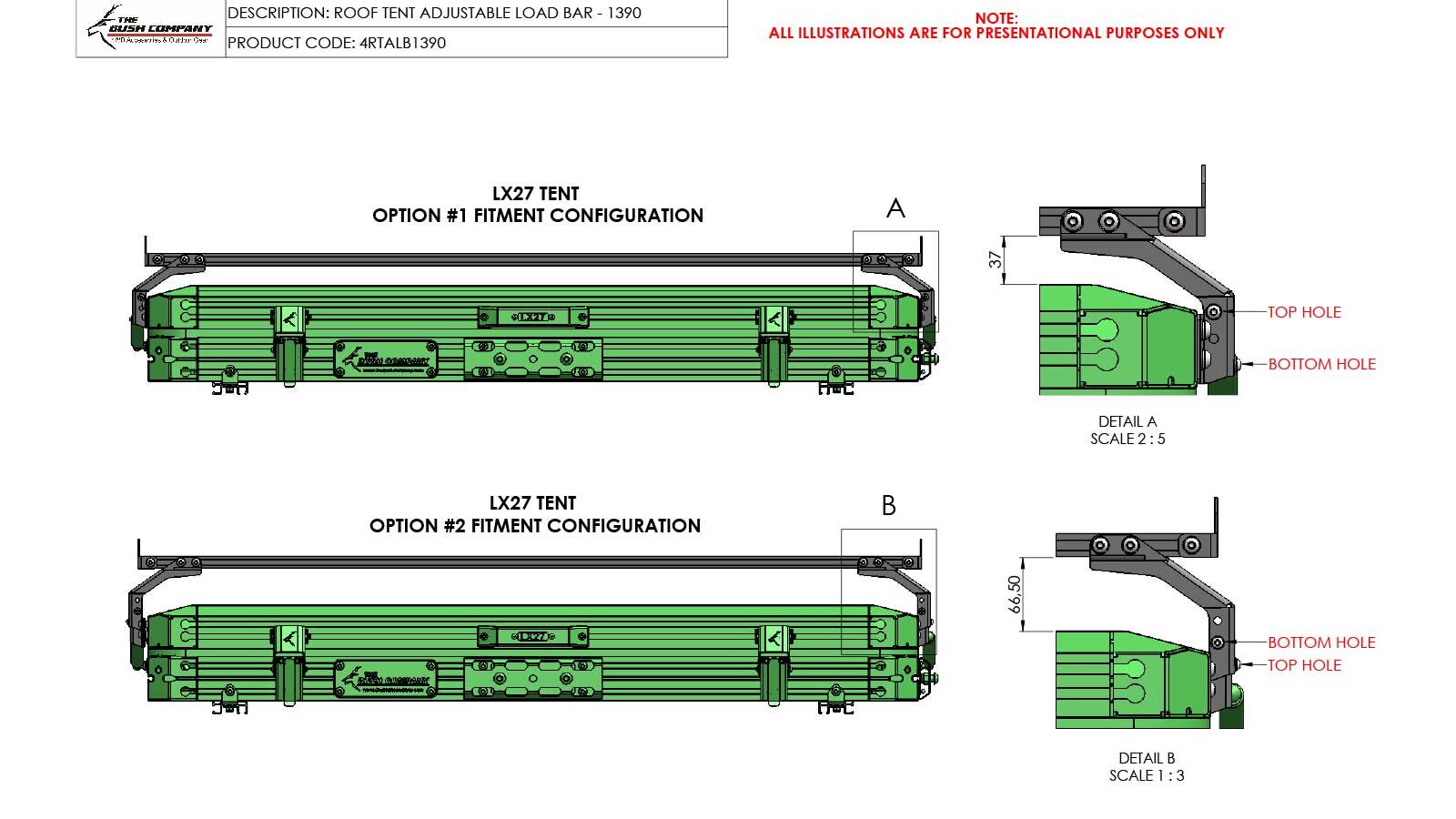

The Adjustable Load Bar can be configured at two heights resulting in either 37mm (1 ²⁹/₆₄”) or 66mm (2 ¹⁹/₃₂”) between the bottom edge of the load bar and the roof of the tent.
When mounting solar panels to the load bars using the Solar Panel To Load Bar Bracket Set, if you use a slimline panel like our lightweight slimline 200W solar panel which is only 25mm thick you can set the load bar at the lower height, but if you are using a standard 35mm framed panel we would recommend the higher setting for the load bar. The Recovery Tracks-Load Bar Set can also be mounted to one of these load bars.
